Starters

Everything you should know about VW starters and solenoids*:

The above link includes:

* Diesel starter is shown/used in that link. Diesel starters contain reduction gear sets and are larger and heavier than gasoline starters.

Intermittent Starting

Causes and remedies:

No Start

Common causes:

  • No spark
  • Faulty/wet distributor cap, rotor, and/or spark plug wires
  • Weak coil
  • Faulty ignition switch
  • Defective Hall sender and/or wiring
  • Incorrect ignition timing
  • Broken timing belt
  • Faulty fuel system
  • Engine mechanical failure
  • Faulty hot-start relay, if installed

warning "Engine will not turn over." Turn over, in the car world, means to crank. When describing a no start issue, "will not turn over" is an indication to experts that the engine is not cranking. Because specifics are better, it's wiser to say that "the engine will crank, but not start".

warning Is it a starting issue, or a running issue? If the car starts and runs, albeit poorly, it does not have a starting problem; the car has a running issue. For troubleshooting, visit the engine and/or fuel system pages.

For complete diagnostic procedures for all of the above, please refer to your Bentley Service Manual (or other repair manual).

No Restart When Hot

Is it an automatic? Automatic Cabriolets are notorious for this problem due to the poorly-located starter (next to the exhaust manifold). The best solution for this problem is to install a hot-start relay. Also, be sure that the heat-shield is in place.

Installing a hot-start relay:

Spark Plugs & Plug Wires

Spark Plugs

Engines: 1.5L GH, JB

  • Single electrode:
    • Original spark plug: ?
    • Replacement: Beru Z1

Engine: 1.6L EG

  • Single electrode:
    • Original spark plug: ?
    • Replacement: NGK BP7ES (#2412)

Engine: 1.6L EJ

  • Single electrode, Federal models:
    • Original spark plug: Bosch WR9DC?
    • Replacement: NGK BPR5ES (#7734)
  • Single electrode, California models:
    • Original spark plug: Bosch WR7DC?
    • Replacement: NGK BPR6ES (#7131)

Engines: 1.6L EM; 1.3L HK; 1.1L FA, GG

  • Single electrode:
    • Original spark plug: ?
    • Replacement: Beru Z11

Engines: 1.6L EW, HN, RE

  • Single electrode:
    • Original spark plug: ?
    • Replacement: Beru Z2

Engines: 1.7L EN; 1.8L 2H, DX, EG, EX, JH, JJ, KT

  • Triple electrode:
    • Original spark plug: Bosch W7DTC
    • Replacement: NGK BP6ET (#1263)
    • Replacement: Beru Z12
  • Single electrode:
    • Original spark plug: Bosch W7DC
    • Replacement: NGK BP6ES (#7333)

Spark plug guide:

Spark Plug Wires

Bosch is still making decent wires, so they are still recommended. However, NGK is now making a set of plug wires for these cars, which are also recommended (#VWC013, or NGK57283). NGK wires include cylinder number labels; these do not correspond to 1979-1993 Volkswagen inline-four engines. Ignore these labels and install them one-by-one, according to your old plug wire lengths.

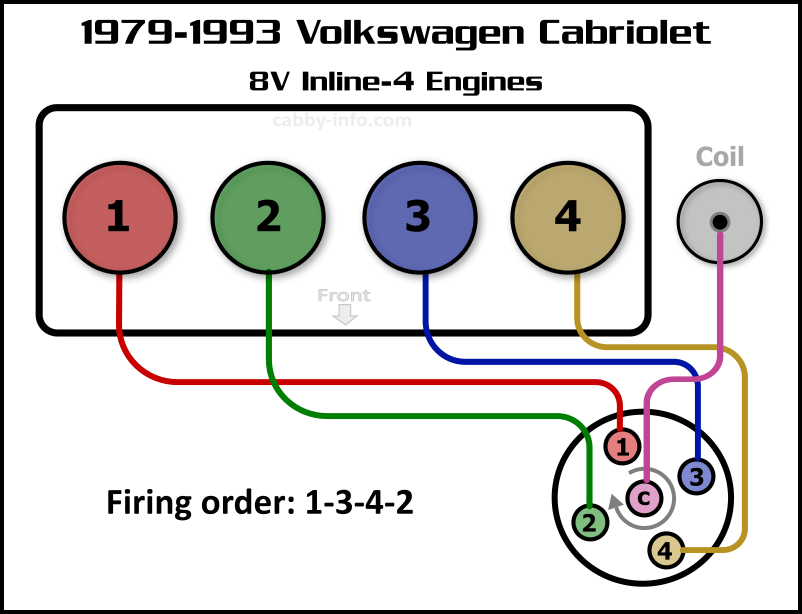

Firing order: 1-3-4-2

Distributor Components

Ignition distributor component guide: Distributor Guide Download

Ignition Coils

Ignition coils guide:


Ignition Control Unit Pin-outs

Pin K-Jetronic Function Digifant Function Wire Color
1 Terminal 1 on coil Terminal 1 on coil K-Jetronic: Green
Digifant: Red/Black
2 Ground Ground K-Jetronic: Brown
Digifant: Brown/White
3 Terminal 1 on Hall generator
-
n/a Brown/White
4 Terminal 15 on coil Terminal 15 on coil Black
5 Terminal 3 on Hall generator
+
n/a Red/Black
6 Terminal 2 on Hall generator Terminal 25 on Digifant ECU K-Jetronic: Green/White
Digifant: Green/Black

Load Reduction Circuit

Also known as the "X" circuit, the load reduction circuit is exactly that: It is the circuit that reduces the load on the ignition system during cranking by cutting power to high-load accessories. These accessories include the headlights, the HVAC system, windshield wipers, and rear window defroster.

More thorough explanation and troubleshooting can be found at this link.

Battery

North American Cabriolets were originally equipped with Group 41 lead acid batteries. These are now becoming harder to find in some regions, but there are other options available; refer to the guide below.

Starting battery guide:
